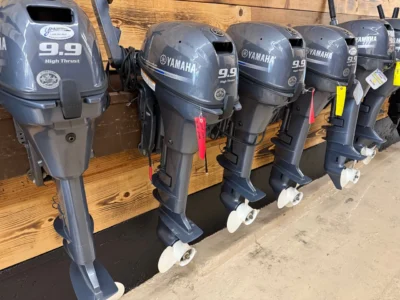

For boaters seeking reliable “muscle” in a compact package, the Yamaha High Thrust T9.9XPHB 9.9 HP Outboard Motor stands as the industry benchmark for kicker and secondary power applications. Whether you are maneuvering a heavy sailboat through a crowded marina, pushing a pontoon, or trolling for walleye, this motor is engineered for high-torque performance that standard outboards cannot match
This comprehensive guide explores why the T9.9XPHB is the “Gold Standard” for high-thrust portables and how its technical features translate to real-world reliability
Core Specifications and Engineering
The T9.9XPHB is built on a 212cc, two-cylinder, single-overhead-camshaft (SOHC) platform. Unlike standard 9.9 HP models, the “T” (High Thrust) series is specifically geared for heavy lifting.
| Feature | Specification |
|---|---|
| Engine Type | 2-Cylinder 4-Stroke SOHC |
| Displacement | 212cc |
| Shaft Length | 25″ (Extra Long) |
| Prop Shaft HP | 9.9 hp @ 5500 RPM |
| Weight | ~114 lbs |
| Gear Ratio | 2.92:1 |
| Starter | Electric |
| Tilt | Power Tilt |
The High Thrust Advantage: Gear Ratio and Propeller
The primary mechanical difference that defines the T9.9XPHB is its 2.92:1 gear ratio. This aggressive gearing allows the motor to spin a significantly larger-diameter, low-pitch propeller
Standard outboards are designed for speed, but the T9.9 is designed for thrust. When paired with Yamaha’s patented Dual Thrust™ Propeller, this motor generates up to 60% more forward thrust and 70% more thrust in reverse than conventional models. The dual-thrust design works by rerouting exhaust gases away from the propeller blades in reverse, allowing them to bite into “clean” water rather than air-filled exhaust bubbles
Key Features for Convenience and Control
Yamaha has redesigned this series to emphasize portability and ease of use for recreational and commercial boaters alike
- Electric Start and Power Tilt: Standard on the T9.9XPHB, these features allow for effortless operation from a helm or tiller.
- Multi-Function Tiller Handle: Featuring an ergonomic design with a forward-mounted shift lever and a shorter handle, it reduces operator fatigue during long days of trolling.
- Prime Start™ System: Much like a modern car, this feature automatically controls the warming process, eliminating the need for a traditional choke and ensuring reliable cold starts.
- Compact Portability: Despite its “muscle,” the motor weighs only 114 lbs. It includes built-in front and rear carrying handles and special resting pads for secure on-side storage without oil leakage
Reliability and Durability
Yamaha’s reputation for longevity is built into the T9.9XPHB through several specialized protection systems.
1. Corrosion Protection
The motor utilizes a 5-stage paint system and a unique YDC-30 aluminum alloy to protect exterior components. Sacrificial anodes and extensive use of stainless steel further safeguard the engine in both freshwater and saltwater environments.
2. Shallow Water Drive
A standard feature on tiller models, this allows the operator to tilt the motor into a shallow-water position to protect the propeller and lower unit from submerged obstacles while maintaining low-speed maneuverability.
3. Advanced Lubrication
A pressurized wet-sump lubrication system ensures that critical overhead valve components remain lubricated, even during prolonged idling or low-RPM trolling
Maintenance and Longevity Tips
To ensure your Yamaha T9.9XPHB lasts for 20+ years, regular maintenance is essential.
- Freshwater Flushing: Use the built-in Freshwater Flush Device to rinse salt and debris from the engine block after every use without needing to run the motor.
- Routine Oil Changes: Yamaha recommends changing engine and lower unit oils every 100 hours of operation.
- Fuel Management: Because the T9.9 uses a carburetor, it is sensitive to fuel degradation. Always use a 10-micron fuel/water separating filter and treat fuel with stabilizers like Yamalube Ring Free PLUS to prevent carbon buildup.
- Anode Inspection: Regularly check sacrificial anodes for wear, as these are critical for preventing galvanic corrosion on the engine’s internal passages
Is the T9.9XPHB Right for You?
The Yamaha High Thrust T9.9XPHB is ideally suited for:
- Sailboats: For maneuvering heavy hulls in and out of slips.
- Trolling/Kicker Duty: Perfect for multi-species or flats boats where precise low-speed control is needed to stay on the fish.
- Pontoons: Providing the torque required to push wide, high-drag hulls
If your boating needs demand “heavy lifting” over top-end speed, the T9.9XPHB offers a unmatched combination of power, portability, and legendary Yamaha reliability
Conclusion: The Ultimate Choice for Power and Precision
The Yamaha High Thrust T9.9XPHB isn’t just another portable motor; it is a precision-engineered tool designed for those who refuse to compromise on control. By combining a high-torque gear ratio with the innovative Dual Thrust™ propeller, Yamaha has created a “kicker” that handles heavy loads with the grace of a much larger engine. Whether you are navigating a sailboat into a tight slip or holding a steady troll against a heavy current, the T9.9XPHB provides the reliable, quiet, and efficient performance that has made Yamaha a household name on the water. Investing in this outboard means investing in years of hassle-free boating and the peace of mind that comes with industry-leading engineering.
